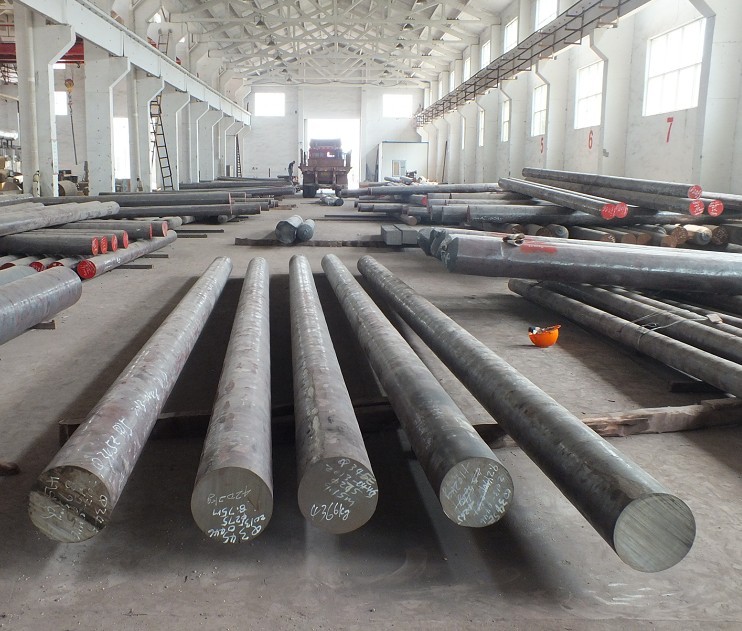

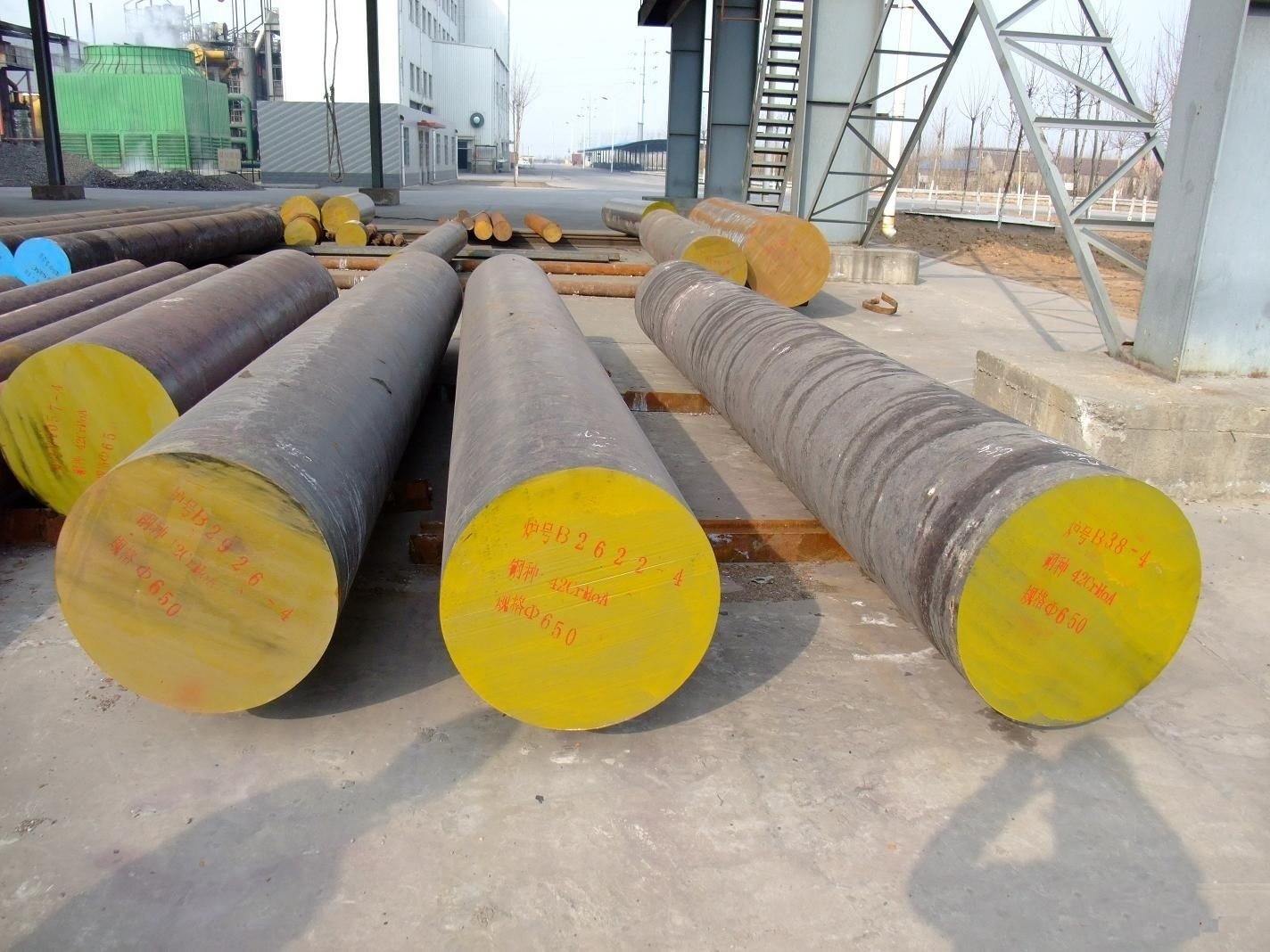

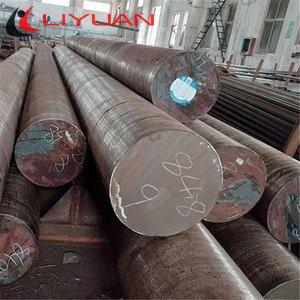

Forged Alloy Round Steel Bar EN 19 42crmo4 4140 , do QT and turned surface. machine shaft
En24 En8 4340 4150 4130
size: 100mm- 800mm
.Supply Size range
Hot Rolled en19 steel bar: Ø16mm-310mm
Forging en19 steel bar: Ø260mm-1000mm
Q&T (Quenched&tempered):Ø16-1000mm
Cold drawn bright steel bars : 5mm to 120mm
.Chemical composition
ASTM A29/29M | C | Si | Mn | Cr | Mo | P | S |
4140 | 0.38~0.43 | 0.15~0.35 | 0.75~1.00 | 0.80~1.10 | 0.15~0.25 | ≤0.035 | ≤0.040 |
DIN WN-r | C | Si | Mn | Cr | Mo | P | S |
1.7225 | 0.38~0.45 | ≤0.40 | 0.60~0.90 | 0.90~1.20 | 0.15~0.30 | ≤0.035 | ≤0.035 |
GB/T | C | Si | Mn | Cr | Mo | P | S |
42CrMo | 0.38~0.45 | 0.17~0.37 | 0.50~0.80 | 0.90~1.20 | 0.15~0.25 | ≤0.030 | ≤0.030 |
BS | C | Si | Mn | Cr | Mo | P | S |
708M40 | 0.36~0.44 | 0.10~0.35 | 0.70~1.00 | 0.90~1.20 | 0.15~0.25 | ≤0.035 | ≤0.035 |
JIS | C | Si | Mn | Cr | Mo | P | S |
SCM440 | 0.38~0.43 | 0.15~0.35 | 0.60~0.85 | 0.90~1.20 | 0.15~0.30 | ≤0.030 | ≤0.030 |
