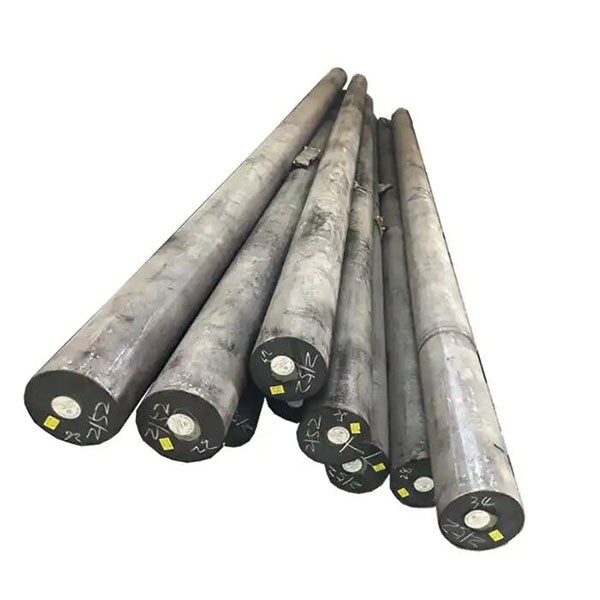

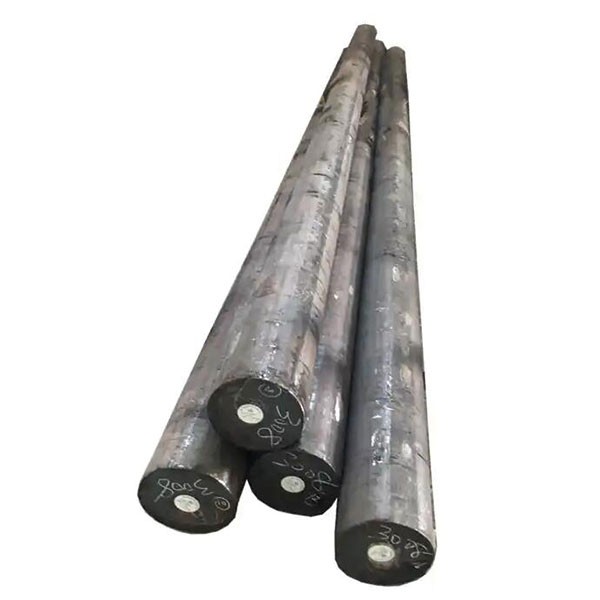

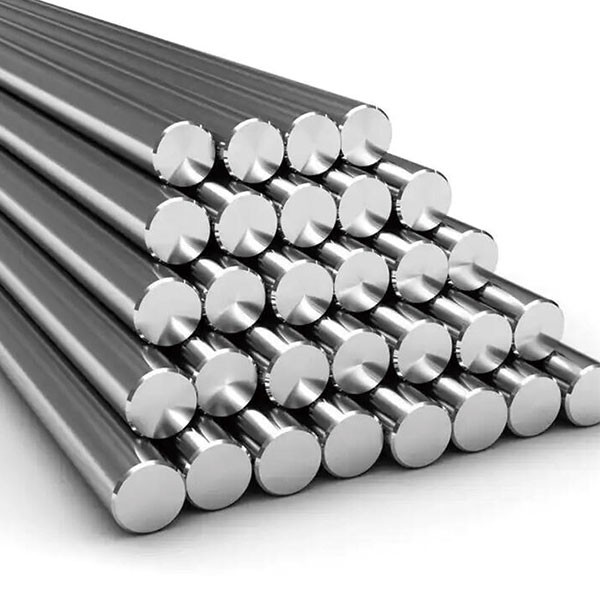

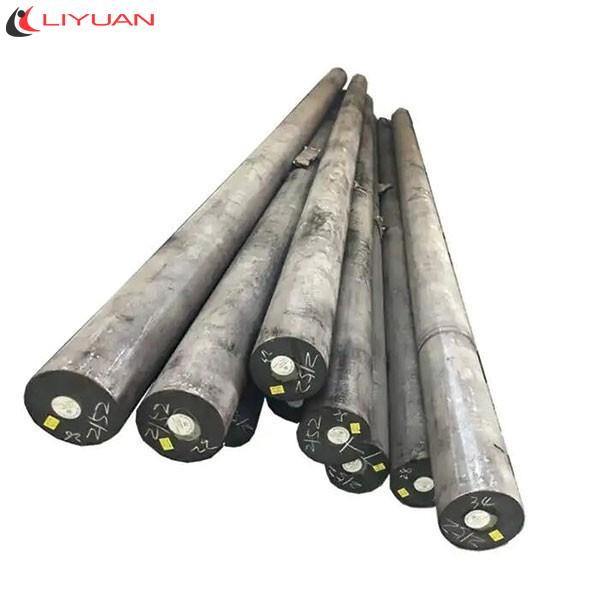

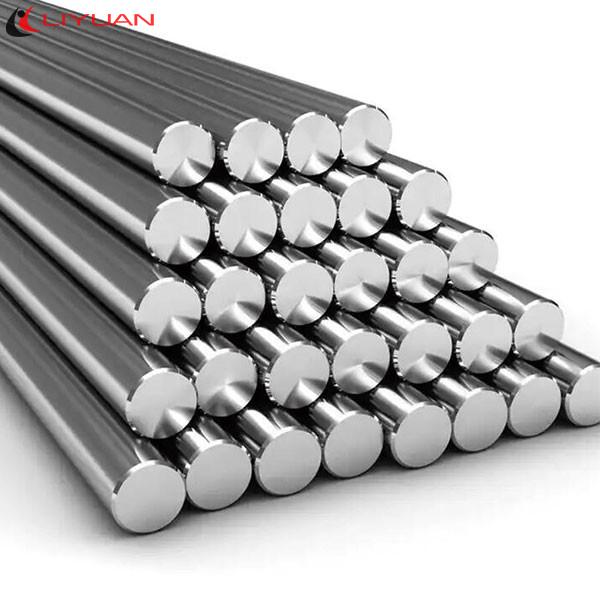

Tool steel bar H13,DIN1.2344, SKD61, 4Cr5MoSiV1
Delivery condition: Hot-rolled or forging,Shape: Round, Flat, Square, Sheet.
Tool steel bar H13,DIN1.2344, SKD61, 4Cr5MoSiV1
Delivery condition: Hot-rolled or forging,Shape: Round, Flat, Square, Sheet.
Shape: Round, Flat, Square, Sheet.
Size range: Square/Round Bar: 12~420mm , Flat:10~155 x 50~ 800mm
Steelmaking Process: EF, EF/EAF+LF+VD, EF/EAF+ESR
Delivery condition: Annealed , Quenched+Tempered
Surface Condition: Black, Grinded, Peeled, Polished, Rough turned
Features:1:Competitive price
2 Immediate delivery
3.Premium quality
4.Reliable serviceChemical Composition:
Chemical Composition(%)
C | Mn | P | S | Si | Cr | V | Mo |
0.32-0.45 | 0.20-0.60 | 0.03max | 0.03max | 0.80-1.25 | 4.75-5.50 | 0.80-1.20 | 1.10-1.75 |
Standard: ASTM681-2008
Class of material: Hot work tool steel
H13 tool steel Hardness requirement:235 HB(MAX)
In accordance with the latest issue of Test Methods and Denitions A370
Specimens after quenching and tempering hardness should meet the following requirements | ||||
Type | Hardness HRC(Min) | Temperature(ºC) | hardening agent | |
quenching | tempering | |||
H13 | 59 | 950 | 850 | Oil |
